Blotting of film-supported gels

April 28, 2023

Electro-blotting (western blotting):
Normal gels have to be cut from the film support before starting the blotting process, otherwise no current will flow through the face of the gel.
Soon available: EDC’s BlotGels. Here the support film can be rolled away easily without cutting first.
BlotGel-IEF manual and Blotting of Horizontal Gels.

This method is recommended for all SDS-gels (10% - 12.5%T!)

Contact blotting
This is the easiest way of blotting! Blotting by directed diffusion.
But it will only gives you good results if the gel itself is thinner than 1 mm and below 10%T.
This method is recommend for all IEF-gels.
The efficiency of this method is not as high as with western blot methods.

See special application-note: “Blotting of Horizontal Gels”

new
[electroblotting]
[contactblotting]
semidryklein2
glasauflegKlein

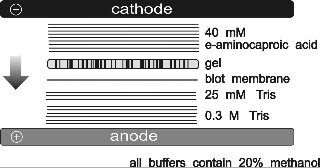

Electro-blotting (western blotting)

Contact-blotting
