April 28, 2023


	To perform an electro blot process the support film must be removed from the gel. Normally horizontal gels are covalently bound to their films and because of that will be hard to remove. BlotGels are bound to their support in a different way: Before blotting you can easily remove the BlotGels from their films! Available on non-fluorescent films.

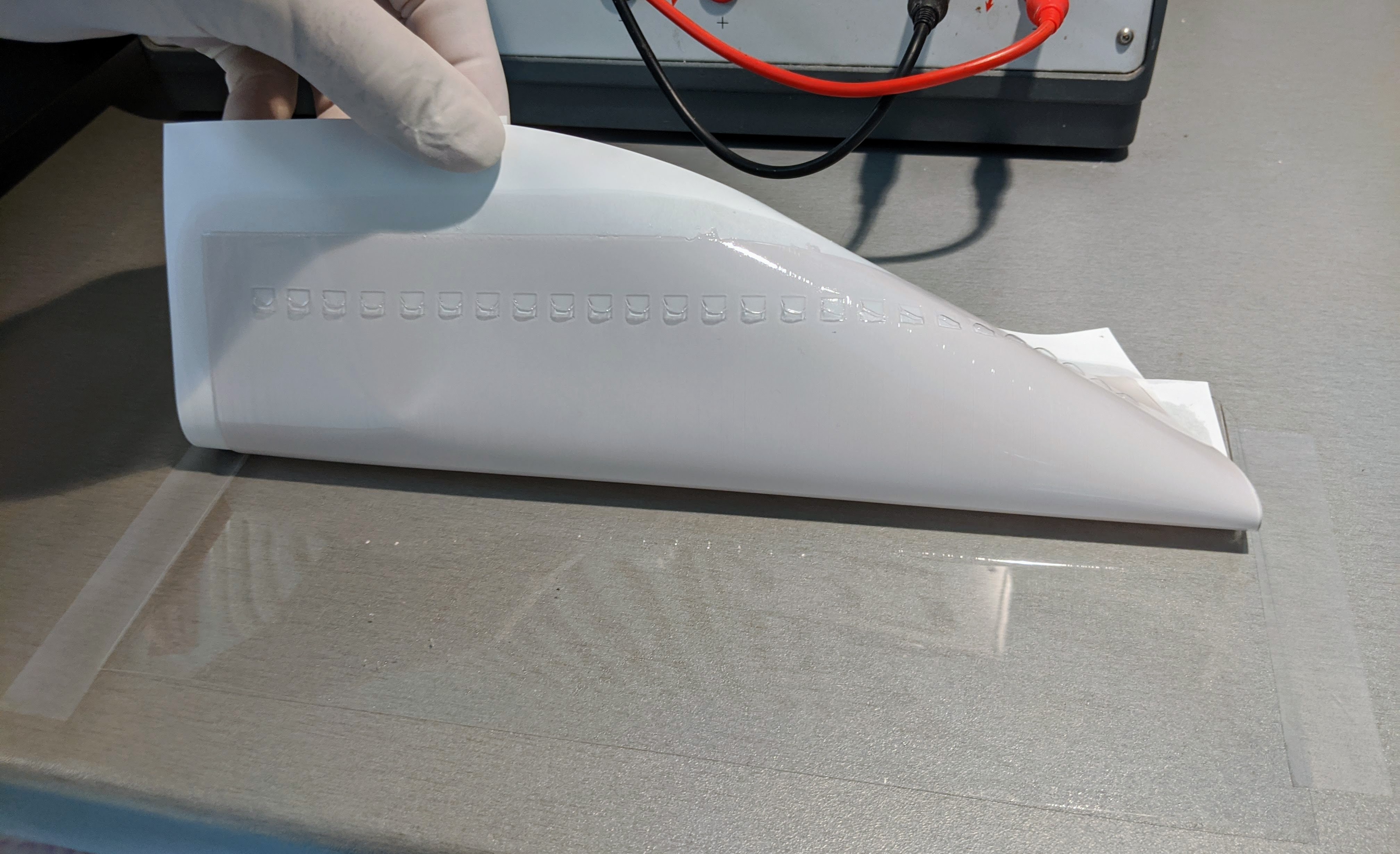

	...removing the blot membrane together with the gel from the support


	Semi-Dry blotting unit (Dyeagnostics)

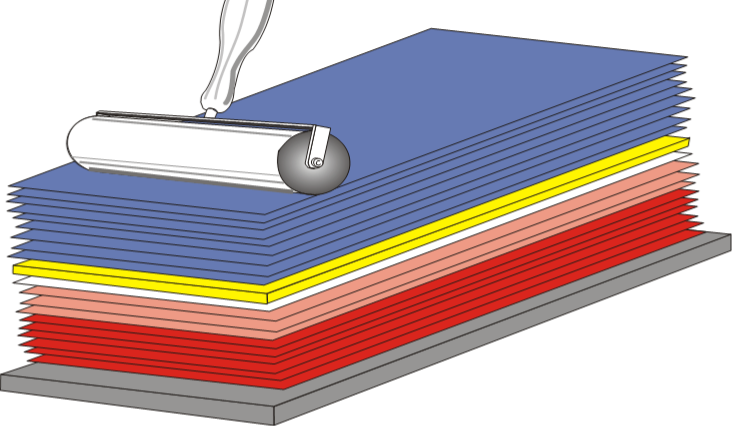

	Semi-Dry blotting stack, see: Blotting


	[BlotGel IEF] [BlotGel Elpho]


	BlotGels IEF & SDS (normal size, on special non-fluorescent backing films)

name	order	gels, dimensions	slots	support	price (EUR)
BlotGel IEF NF no slots pH 3-10	edc-4403	4 gels 250 x 110 x 0,5 mm*	no slots	NF	379
BlotGel IEF NF 24S pH 6-11	edc-4404	4 gels 250 x 110 x 0,65 mm*	24 slots à 20 ul	NF	379
BlotGel SDS NF 25S 12,5%T	edc-4401	4 gels 250 x 110 x 0,5 mm*	25 slots à 20 ul	NF	379
BlotGel SAR NF 25S 10%T	edc-4402	4 gels 250 x 110 x 0,5 mm*	25 slots à 20 ul	NF	379


	different slots or pH-gradients / %T on demand
