SDSGel

Oktober 18, 2021

SDSGels are Ready-To-Use gels for SDS, SAR and DNA with a thickness of 0,5 mm. Methods: SDS, SAR, DNA
These gels are polymerized on support films: Polyester for Coomassie and Silver stain, also for fluorescence in the red channel or
NF-film support for fluorescence on all channels.

PET support film:
For Coomassie- and silverstain.
The fluorophores f.e. T-REX, Flamingo and Pro-Q are working in the red channel (exciting: 648 nm, emission: 663 nm)
See the manuals and data-sheets on “Downloads”. Staining recipes: “fluorescence staining”, “phosphorylated proteins
NF support film:

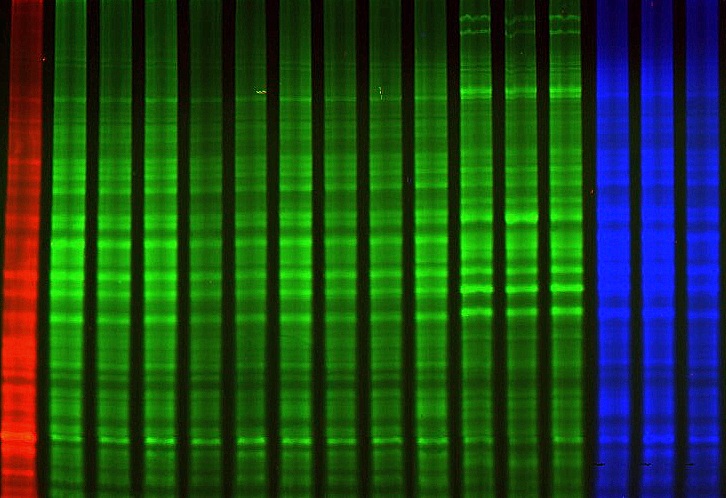

For fluorescence stainings in all channels (UV, blue, green and red), e.g. DIGE, FITC etc.

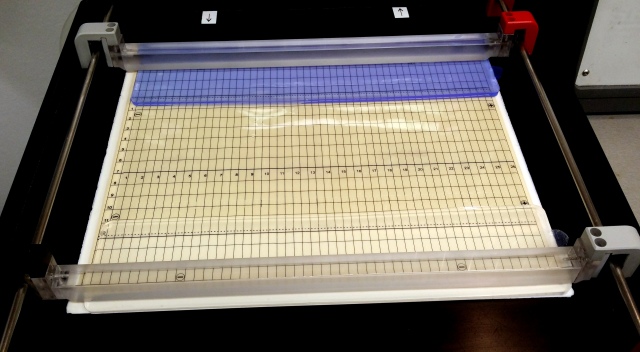

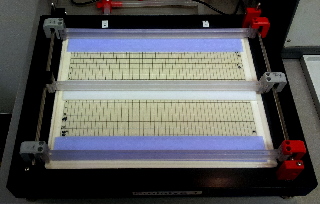

All SDSGels (110 mm and 85 mm) can be run on flatbed professional, on EDC’s flatbed modular system
and on ORCA Gel Electrophoresis (DyeAgnostics, Halle)

The short gels (85 mm) are optimized for ORCA Multitasking Workstation

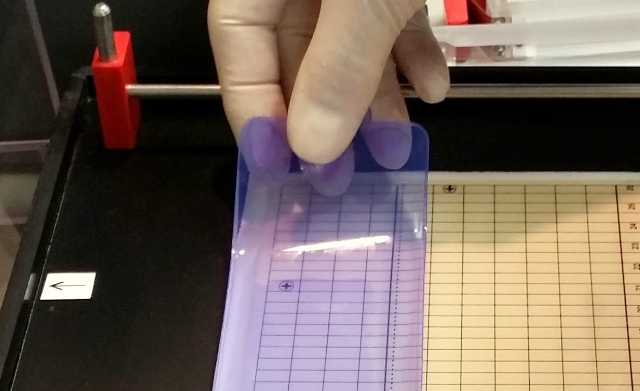

For wetting the paper electrodes (SAR-gels) a DryPool Combi is recommended.

Ready-To-Use SDSGel Kits, normal length (110 mm)
(gels on backing-films complete with Electrode Strips (SDS, SAR), Sample Buffer and Cooling Fluid)

name

order

gels, dimensions

slots

support

price (EUR)

SDSGel SAR Kit 10% 25S **

edc-4204

4 gels
250 x 110 x 0,5 mm

25 slots (à 15 ul) *

PET

310

SDSGel SAR Kit 10% 40S **

edc-4205

4 gels
250 x 110 x 0,5 mm

40 slots (à 10 ul) *

PET

310

Ready-To-Use SDSGel Kits, short (110 mm)
(gels on backing-films complete with Electrode Strips (SDS, SAR), Sample Buffer and Cooling Fluid)

name

order

gels, dimensions

slots

support

price (EUR)

SDSGel Kit 12.5% 25S short NF **

edc-4011

4 gels
250 x 85 x 0,5 mm

25 slots (à 15 ul)*

NF-film

314

SDSGel Kit 12.5% 52S short NF **

edc-40xx

4 gels
250 x 85 x 0,5 mm

52 slots (à 5 ul)*

NF-film

314

Urinary Protein Kit Gradient ***

edc-4010

4 gels
250 x 85 x 0,5 mm

52 slots (à 5 ul)*

PET

314

10X Sample Buffer SDS NF   edc-4200      50 ml     25 EUR

10X Sample Buffer

10X Sample Buffer NF
...for diluted samples
(no dyes and an optimized pH-value for fluorescence derivating process)

* All slot geometries are multipipette compatible
*
As kit with fluorescent prelabeling dyes: Dyeagnostics GmbH
* Additional necessary: DryPool Combi
   http://www.dyeagnostics.com/site/products/spl/, UFO-Kit
