April 28, 2023

DryGel IEF cereal are special designed gels for seed-testing applications.
All these gels are non-toxic!

Two types of matrix are available:
“2p”: special designed matrix with two phases, ‘start phase’ and ‘separation phase’, suitable for clear appearance of varieties and quick run down to 75 min: recommended for urea-containing gels (Maize).
The samples should be applied on the ‘start phase’ side, normally the anode. See picture below.
Recommended for urea-containing gels, f.e. hybrid-male-female typing of Maize.
See manual: IEF-cereal

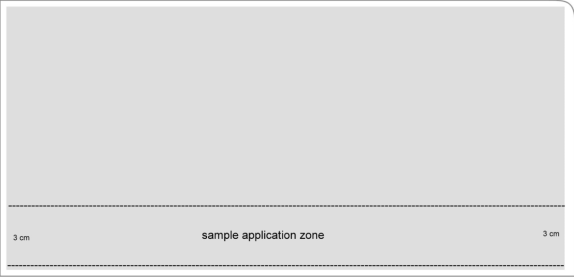

	gel geometry “2 phases”


	separation zone


	“round corner” at right side above


	Maize family: hybrid-male-female on DryGel IEF cereal no slots -2p-, special matrix: “2 phases”; run time 80 min. Acc. to R.Knoblauch (LUFA Augustenberg)


			[DryGel IEF cereal 40S] [DryGel IEF cereal 52S]

	*DryGels IEF cereal*




	Maize family: hybrid-male-female on DryGel IEF cereal no slots -hr-; run time 2 hours.

:Multi-Pipette compatible*

		* after rehydration

name	order	gels, dimensions	slots	supp.	price (EUR)
DryGel IEF cereal 40S	edc-1123 -2p- or -hr-	4 gels 250 x 110 x 0,5 mm*	40 slots à 8 ul	PET	163
DryGel IEF cereal 52S	edc-1126 -2p- or -hr-	4 gels 250 x 110 x 0,5 mm**	52 slots* à 12 ul	PET	163


	* multi-channel compatible

		EDC Electrophoresis Development & Consulting, Vor dem Kreuzberg 17, 72070 Tübingen (Germany)
