Anodal Native Protein/DNA Electrophoresis

April 28, 2023

The buffer's pH-value is basic and the target molecules are negatively charged. They run towards the anode.
Proteins:
Used only for acidic and neutral proteins. Basic proteins will run backward!
DNA:
Double strand DNA run according to their basepairs, single stranded DNA will show sequence specific results.

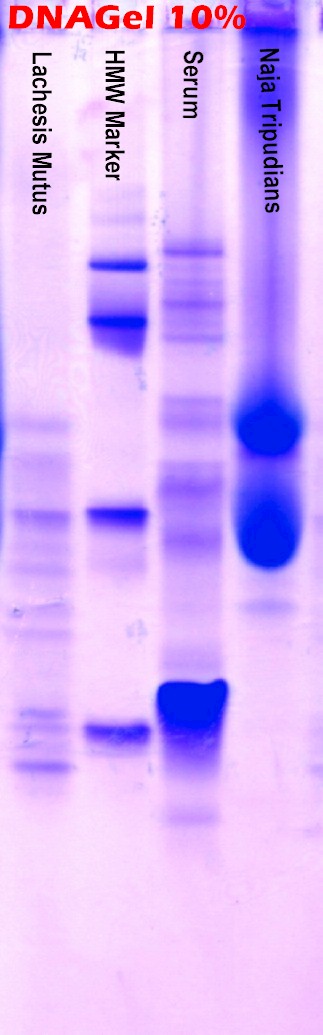

Snake Poisson on Delect Buffer

Marker, Serum, Bushmaster and Cobra's protein
[DNA Elpho] [Native Trouble]

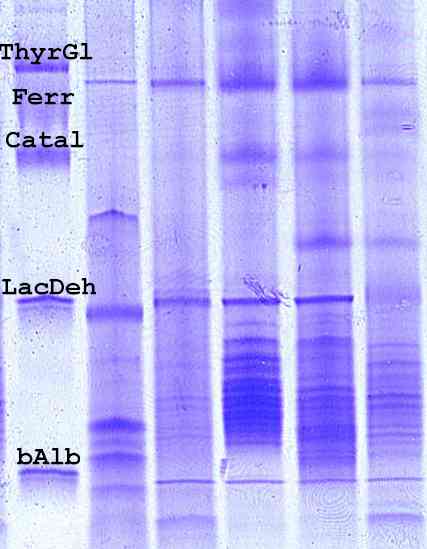

Potatoes with the Delect Buffer

Different potatoe varieties.
Left side: GE's HMW-marker

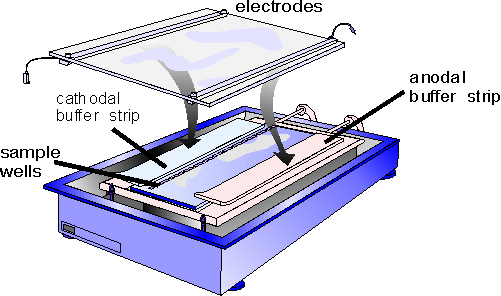

Arrangement for an anodal run

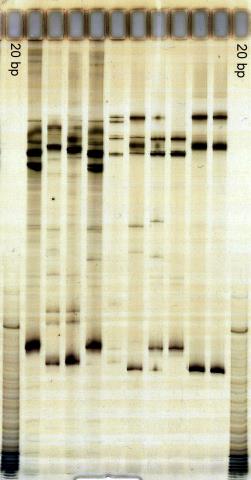

SSCP-DNADiscWeb

DNA-electrophoresis: different fish varieties

single strands

double strands
