Mai 30, 2018

Our horizontal chamber for professional electrophoresis: up to 6 pluggable electrodes for multiple IEFs up to a total square of 270 x 310 mm (cooling plate + frame = electrophoretic work space)
Suitable also for horizontal SDS - native - proteomics - DNA electrophoresis
normal size SDS and IEF gels (260 x 125 mm) + 2 x electrodes (à 5 cm) = total length: 21 cm

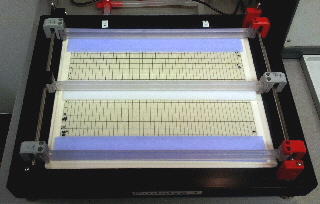

bidirect SDS-runs: 2 SDS-gels
Large-2D gels (260 x 190 mm) + 2 x electrode (à 5 cm) = total length: 32 cm

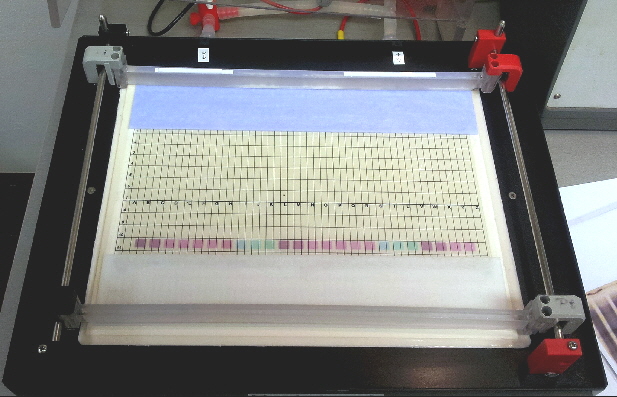

flatbedSDS-ProbKlein3

normal size SDS-arrangement: 270 x 210 mm on the cooling plate

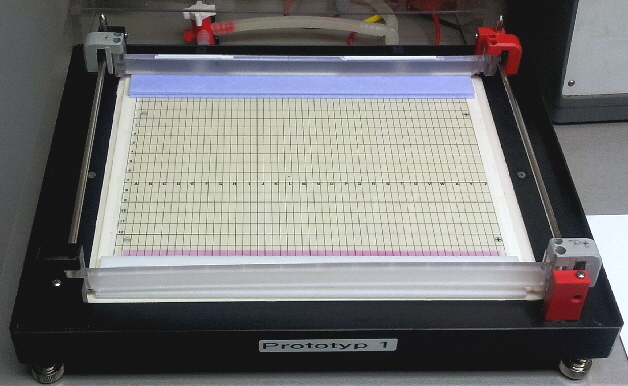

2D-Large#5Klein

large size 2D-arrangement (second dimension, SDS): 270 x 310 mm on the cooling plate

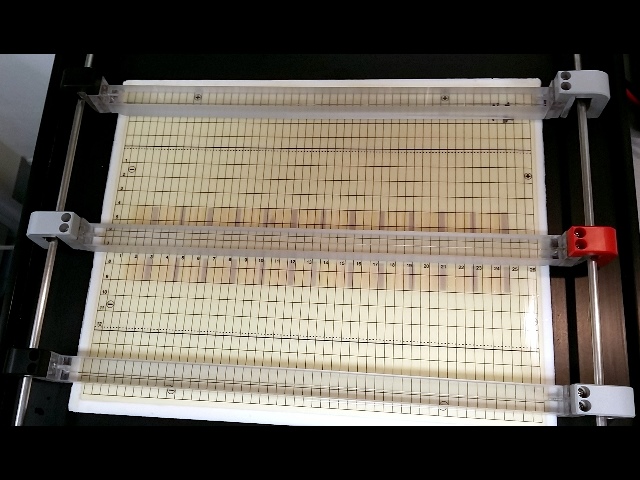

flatbed IEF prof. with 3 electrodes

bidirectional SDS

flatbed professional, 4 electrodes

IEF large bidirect

Technical Details: Order Number: edc-prof-2836
Dimensions: 12 cm x 40 cm x 40 cm (H x B x D)
Electrophoretic work space (cooling plate + frame) = 270 x 310 mm
Delivery complete with cooling-tubes, 3-way-valve and T-Piece
Power-cables (4 mm plug)
Applications: horizontal electrophoresis and IEF, first dimension focusing of IPG-strips up to 26 cm in a tray of 1 cm height, proteomics’ second dimension (large-sized SDS-gels: 26 x 19 cm + electrodes)
Maximal Voltage: 6000 Volt
Electrodes: up to 6 movable platinum-electrodes. dist.: 1 cm - 27 cm
tolerated height (gel/IPG-tray): 1 cm
Cooling: aluminiumoxyde-ceramic plate (267 x 215 mm) direct cooling ; working range: 5°C - 40°C
Lid: can be set up in an upright position
Data-sheet:Downloads”, or contact EDC
Price:
2600 EUR

Accessories:
Electrodes
flatbed - Anode (red) -             (edc-anod2841)                         295 EUR
flatbed - Cathode (black) -        (edc-cath2842)                         295 EUR

Adapter for power supplies with 2 mm  sockets:
CONSORT: EN61010-1 (4 mm --> 2 mm)
