Ready-To-Use gels for the horizontal second dimension of a 2D-electrophoresis.
These gels are polymerized on support films: Polyester for Coomassie and Silver stain, also for fluorescence in the red channel or NF-support film for fluorescence on all channels..

EQ-type: A new matrix was developed! For best resolution and silver staining behavior. Comparable to the discontinued ExCelGels and to all self-casted SDS-gels!
Gel Electrodes: are now supplied with all ElphoGels 2D, non toxic! Best resolution and super sensitive silver-staining and fluorescence signals.
PET support film:
For Coomassie- and silverstain.
The fluorophors f.e. T-REX, Flamingo and Pro-Q are working in the red channel (exciting: 648 nm, emission: 663 nm). See the manuals and data-sheets on “Downloads”.
Staining recipes: “fluorescence staining”, “phorsphorylated proteins
NF support film:
For fluorescence stainings in all channels (UV, blue, green and red), e.g. DIGE, FITC etc.

All film-supported gels can be scanned directly without any glass cassette! Increased sensitivity!
Stacking gel (5%T) and resolving gel (12.5%T).
All film-supported gels can be scanned directly without any glas-cassette! Increased sensitivity!
Stacking gel (5%T) and resolving gel (12.5%T).

All 2D-Gels can be run on EDC’s flatbed professional and flatbed modular system.
Also on the  old FlatTop (ETC), Multiphor II (GE) and the Serva-Tower.

flatbed professional with IPG-strip

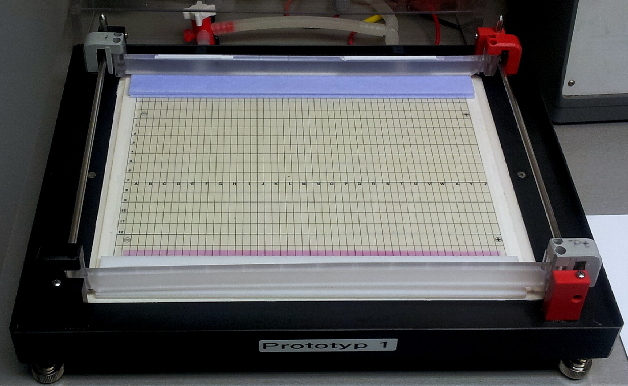

ElphoGel 2D large run on flatbed professional ...

[ElphoGel 2D Small]
[ElphoGel 2D Small NF]
[ElphoGel 2D Large]
[ElphoGel 2D Large NF]
GelElectrodesASKlein

Gel-Electrodes for best resolution, fluorescence and silver staining

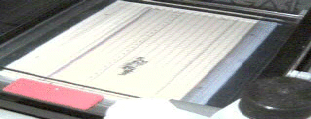

2D-Large-Gel-Electrodes

... runs perfectly straight!

ElphoGel 2D Kits
(Ready-To-Use gels on normal film complete with IPG-equilibration and Gel-Electrodes)

name

order

gels, dimensions

IPG-slots

support

price (EUR)

ElphoGel 2D Kit Small EQ-type

edc-3052

4 gels
250 x 110 x 0,5 mm

2 x 7/11 cm
1 slot for a standard

PET

219

ElphoGel 2D Kit Large EQ-type

edc-3060

4 gels
250 x 180 x 0,5 mm

1 x 18/24 cm

PET

279

ElphoGel 2D Kits NF
(Ready-To-Use gels on non-fluorescent film complete with IPG-equilibration and Gel-Electrodes)

name

order

gels, dimensions

IPG-slots

support

price (EUR)

ElphoGel 2D Kit Small NF EQ-type

edc-3152

4 gels
250 x 110 x 0,5 mm

2 x 7/11 cm
1 slot for a standard

NF-film

219

ElphoGel 2D Kit Large NF EQ-type

edc-3160

4 gels
250 x 180 x 0,5 mm

1 x 18/24 cm

NF-film

279

Consumables
Cooling Fluid    edc-2011     100 ml     for optimal cooling contact between the gel-support and the cooling plate     57 EUR
